Opening Instruments
Instruments for Opening the Medullary Cavity
Opening the medullary canal plays a crucial role in the success of hip arthroplasty. That’s why it’s essential to have the right instruments for each surgical approach. Below, we present a selection of suitable instruments for your choice.

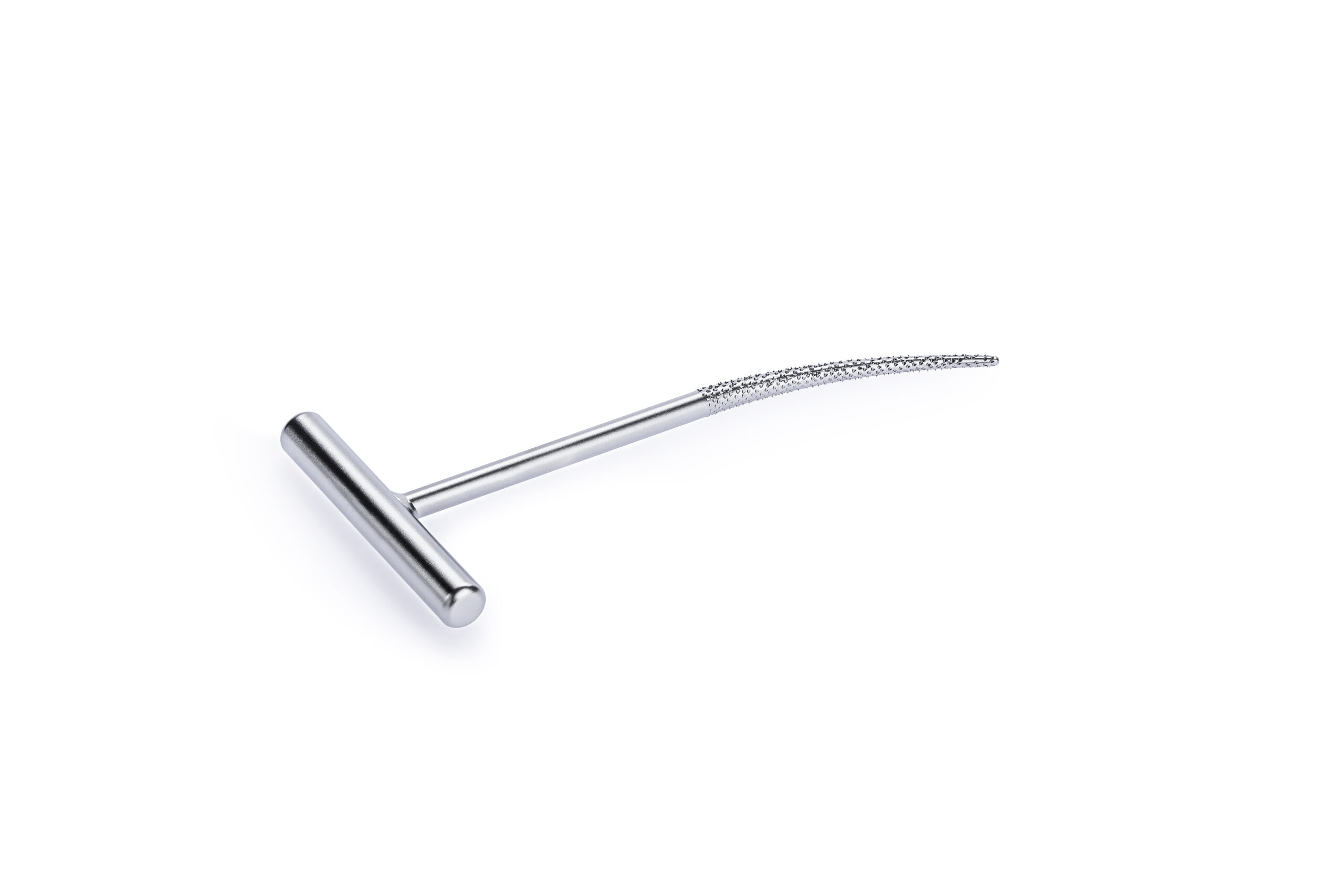

Opening Rasp, hewed
Art. No. 206-008
- Total length: 195 mm
- Handle length: 90 mm
- Rasp length: 85 mm
- Opening diameter: 3 – 8 mm

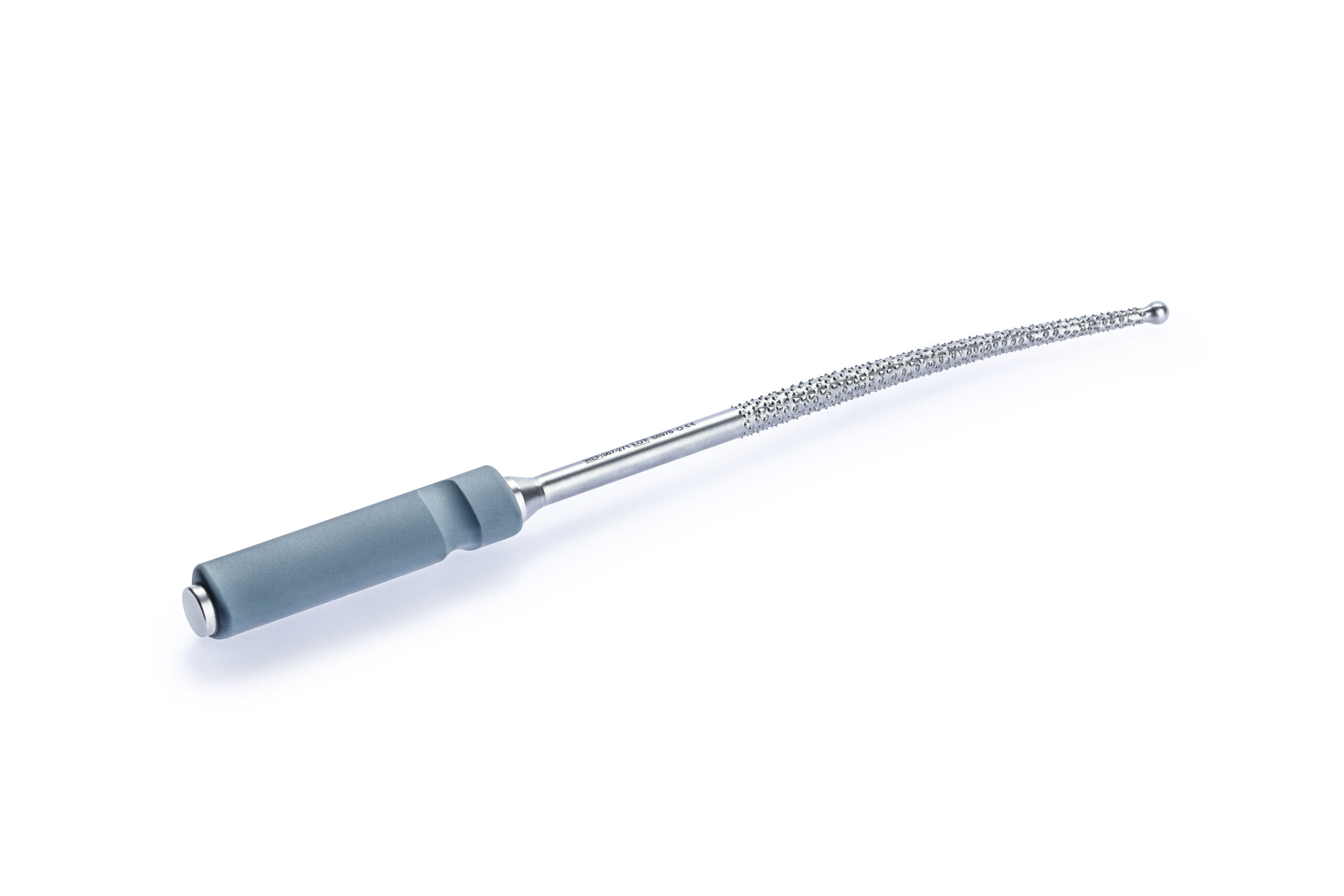

Opening Broach
Art. No. 367-271
-
- Total length: 354 mm
- Handle length: 105 mm
- Rasp length: 159 mm
- Opening diameter: 8 – 12 mm
Opening Broach Anterior Approach
Art. No. 271-331
-
- Total length: 300 mm
- Handle length: 110 mm
- Rasp length: 140 mm
- Opening diameter: 8 mm (top of rasp)
- Curvature angle approx. 115°

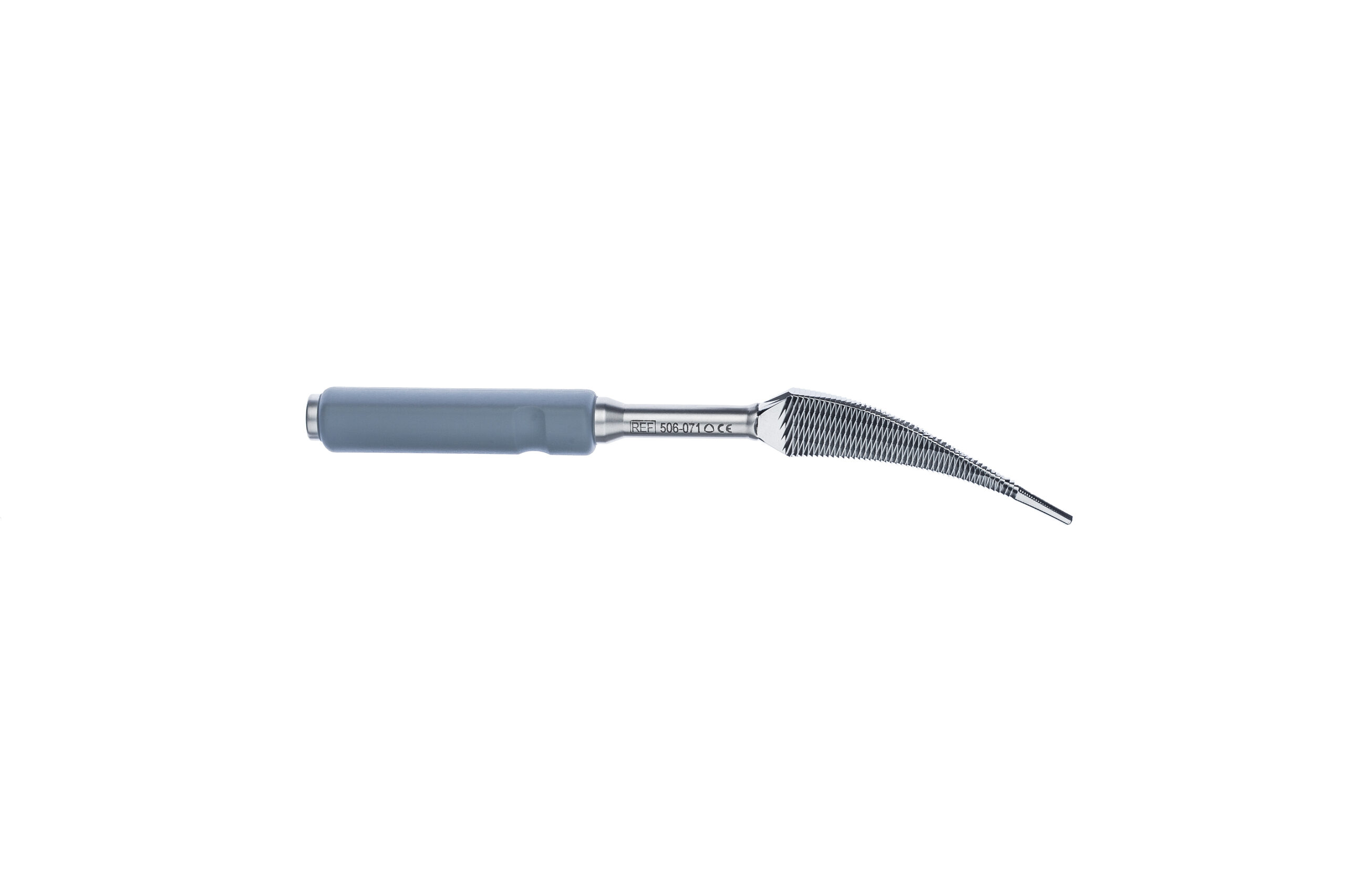

Femoral Rasp
Art. No. 506-071
-
- Total length: 224 mm
- Handle length: 80 mm
- Rasp length: 84 mm
- Rasp thickness: 9 mm
- Rasp width : 20 mm

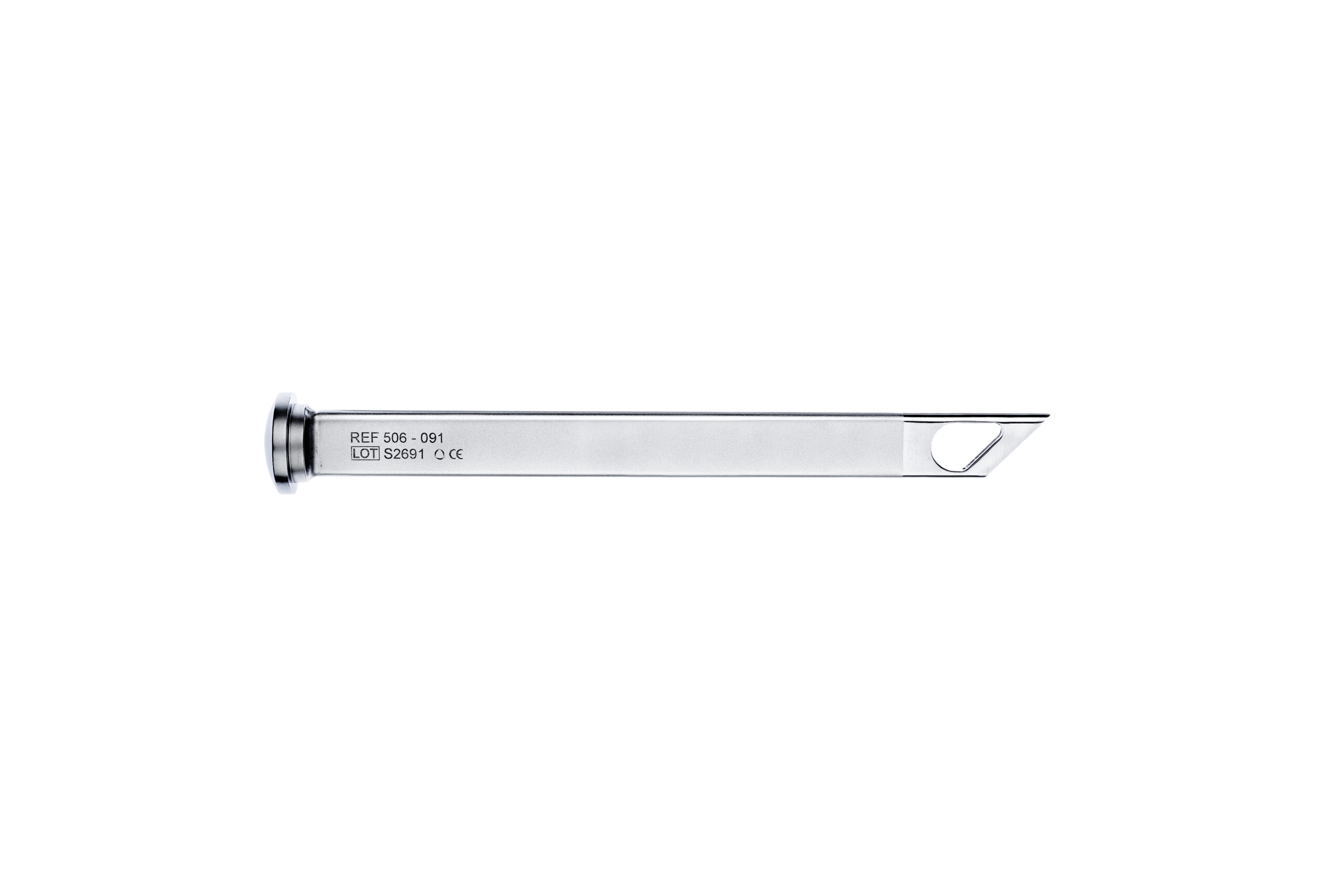

Box Chisel Small
Art. No. 506-091
- Total length: 228 mm
- Striking plate: Ø 30 mm
- Chisel length: 35 mm
- Chisel measurements: 6 x 20 mm

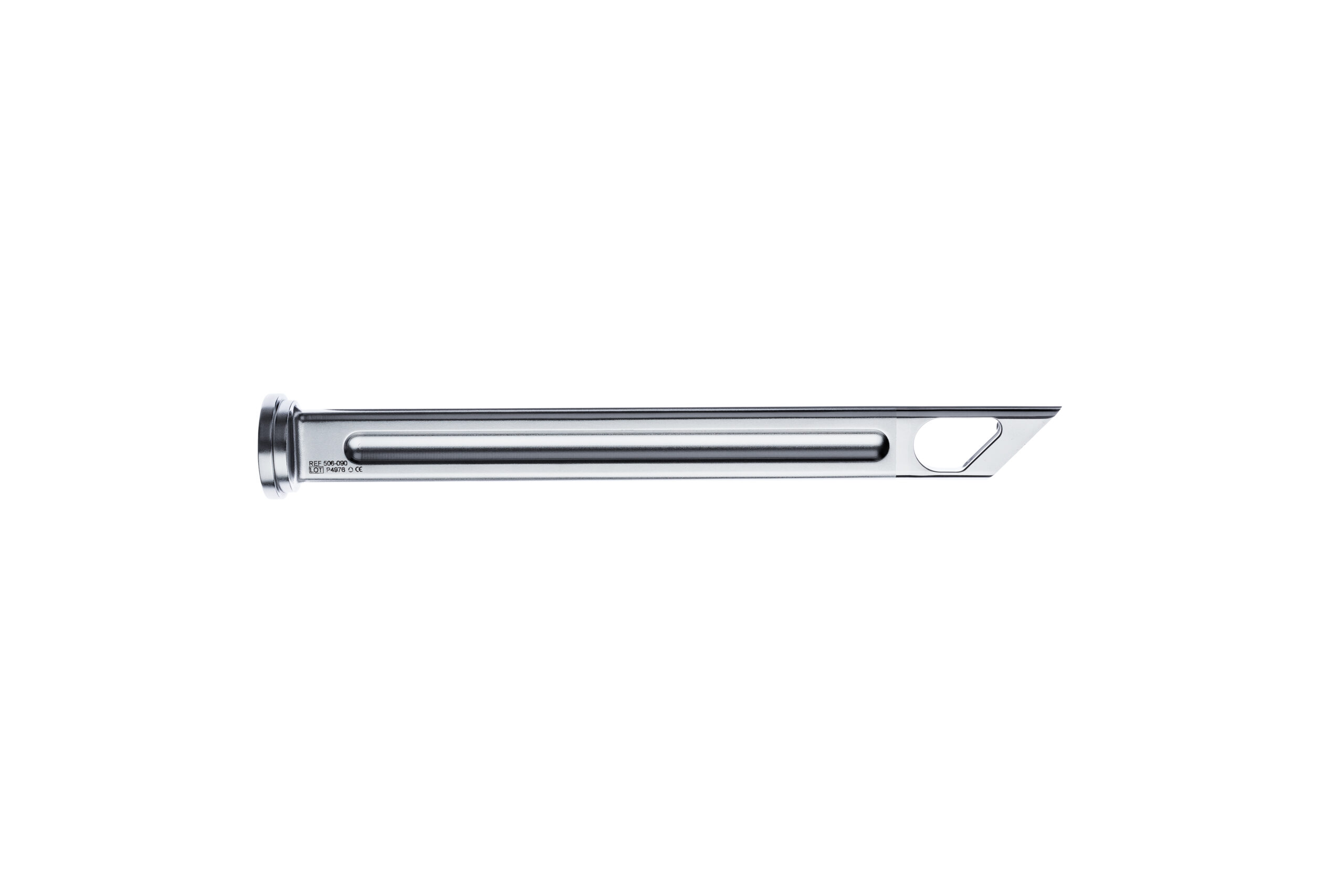

Box Chisel, Large
Art. No. 506-090
-
- Total length: 300 mm
- Striking plate: Ø 40 mm
- Chisel length: 55 mm
- Chisel measurements: 9 x 28 mm
