Screw Instruments
Discover our universal screw instruments, developed for precise and efficient applications in orthopaedics.

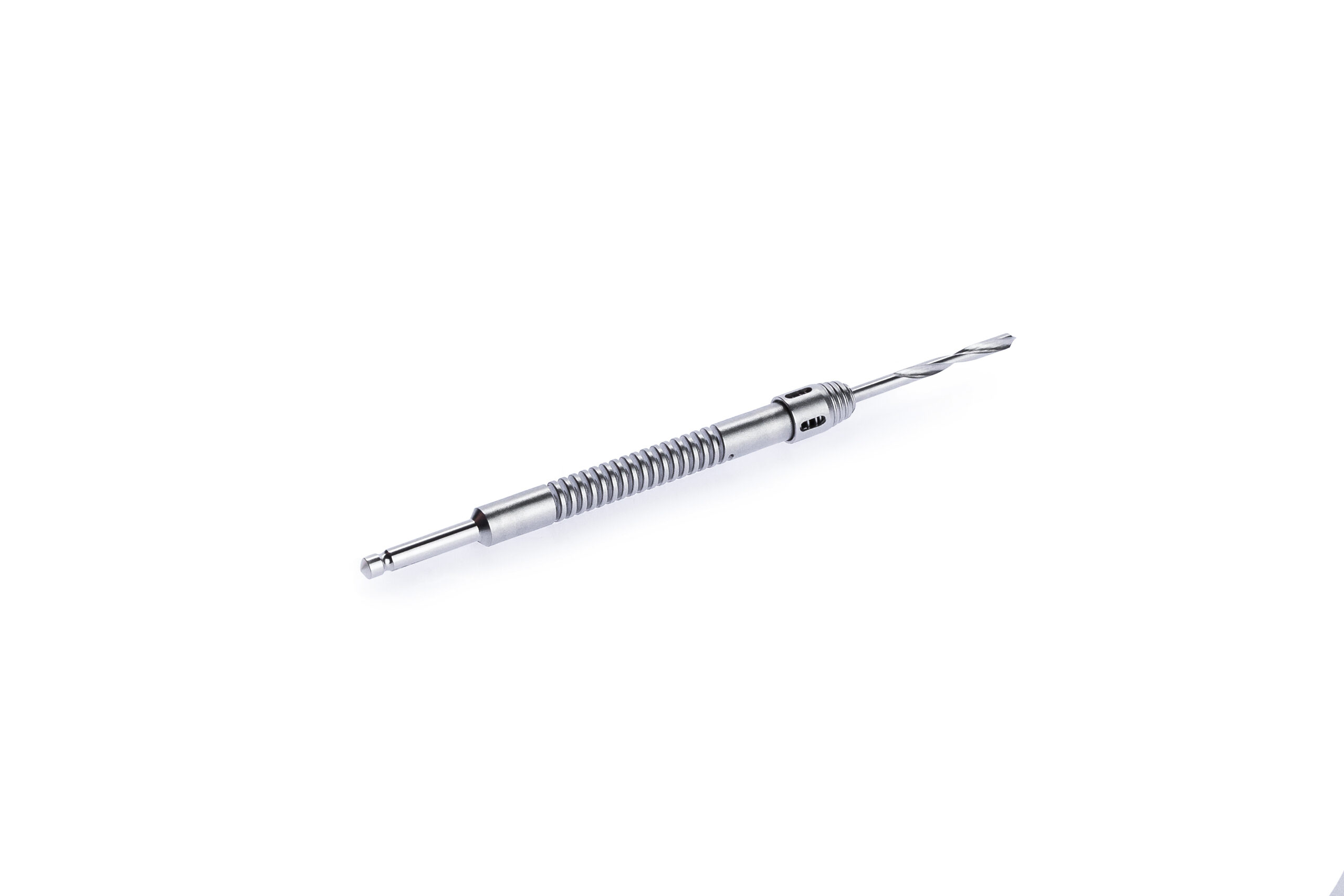

FlexiBit System
The FlexiBit System consists of the FlexiBit Shaft 367-1457 (length 110 mm) or the FlexiBit Shaft 367-1458 (length 180 mm), together with the FlexiBit Drills (Ref. No. 367-1447 to 367-1453). Thanks to its modular and flexible design with an AO coupling, the system is ideally suited for precise drilling of holes in preparation for screw fixation during acetabular cup implantation.
Product Details
- Drills available in Ø 3.2 mm
- Lengths ranging from 25 mm to 80 mm
- Compatible with common systems thanks to the AO coupling
- Quick-connect system for easy instrument change

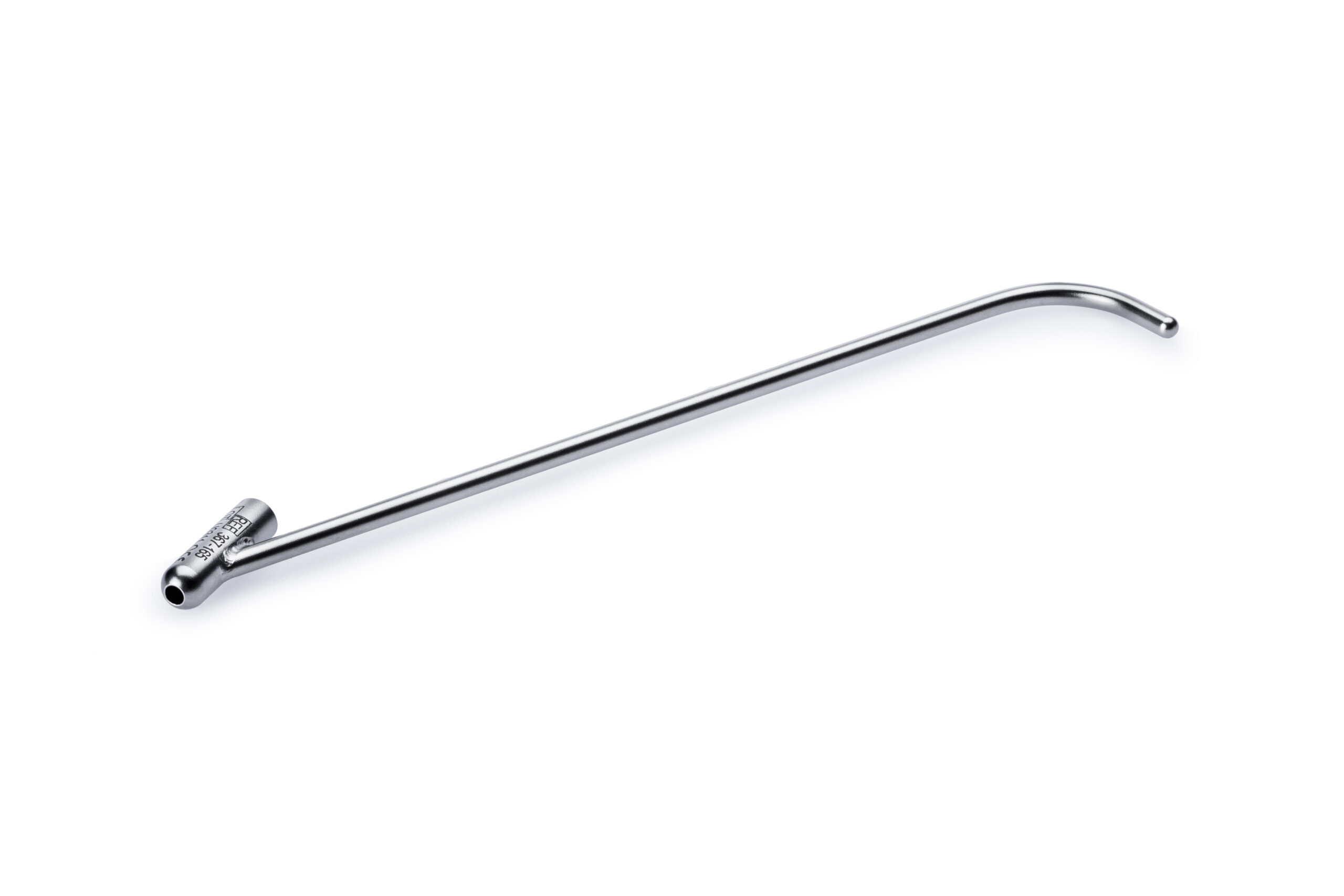

Drill Guide for screws Ø 3,2 mm
Art. No. 367-165
-
- total length: 185 mm
- guide length: 25 mm

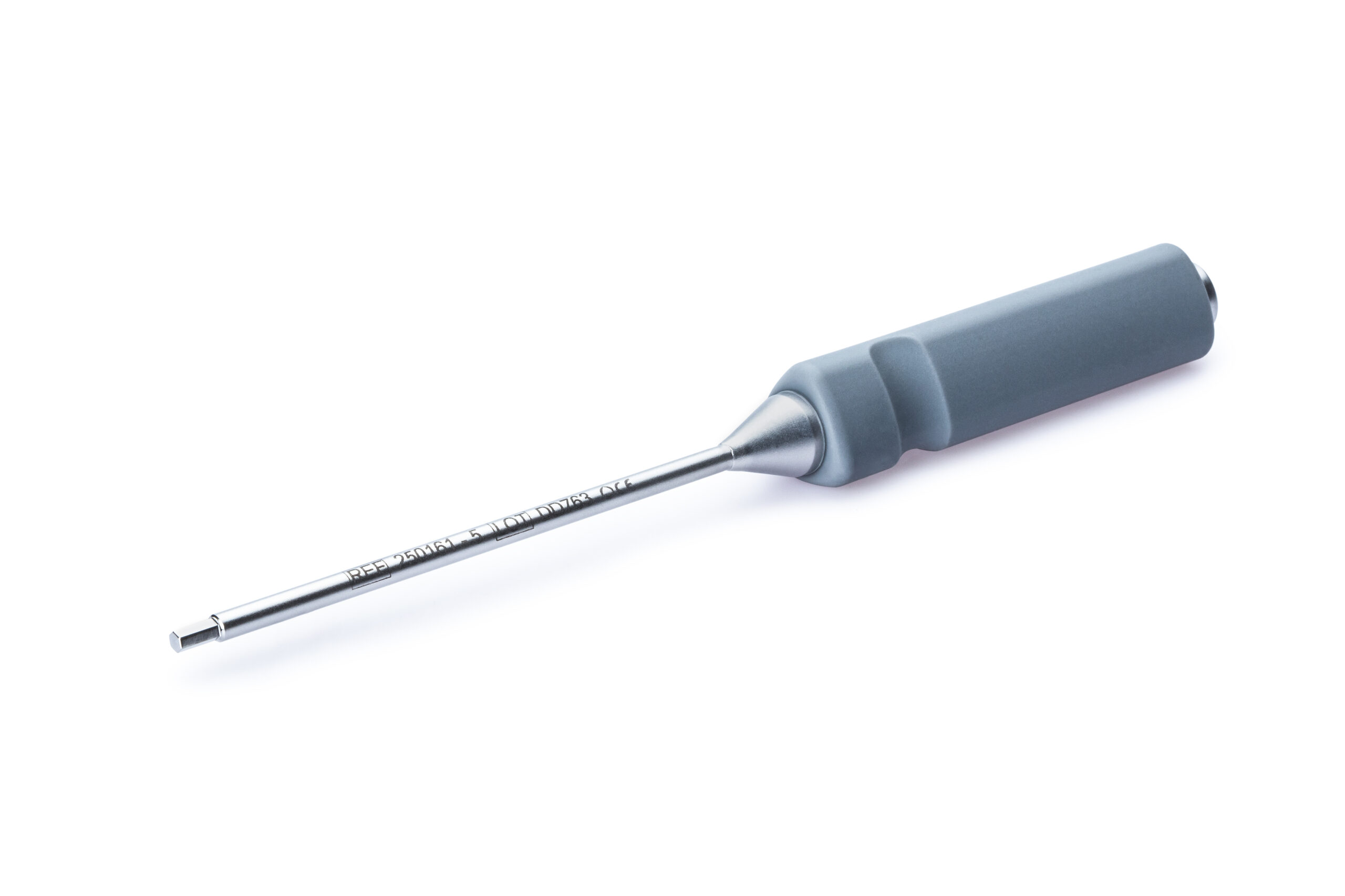

Hexagon screw driver SW 3,5
Art. No. 250161-5
- total length: 250 mm
- length of handle: 104 mm

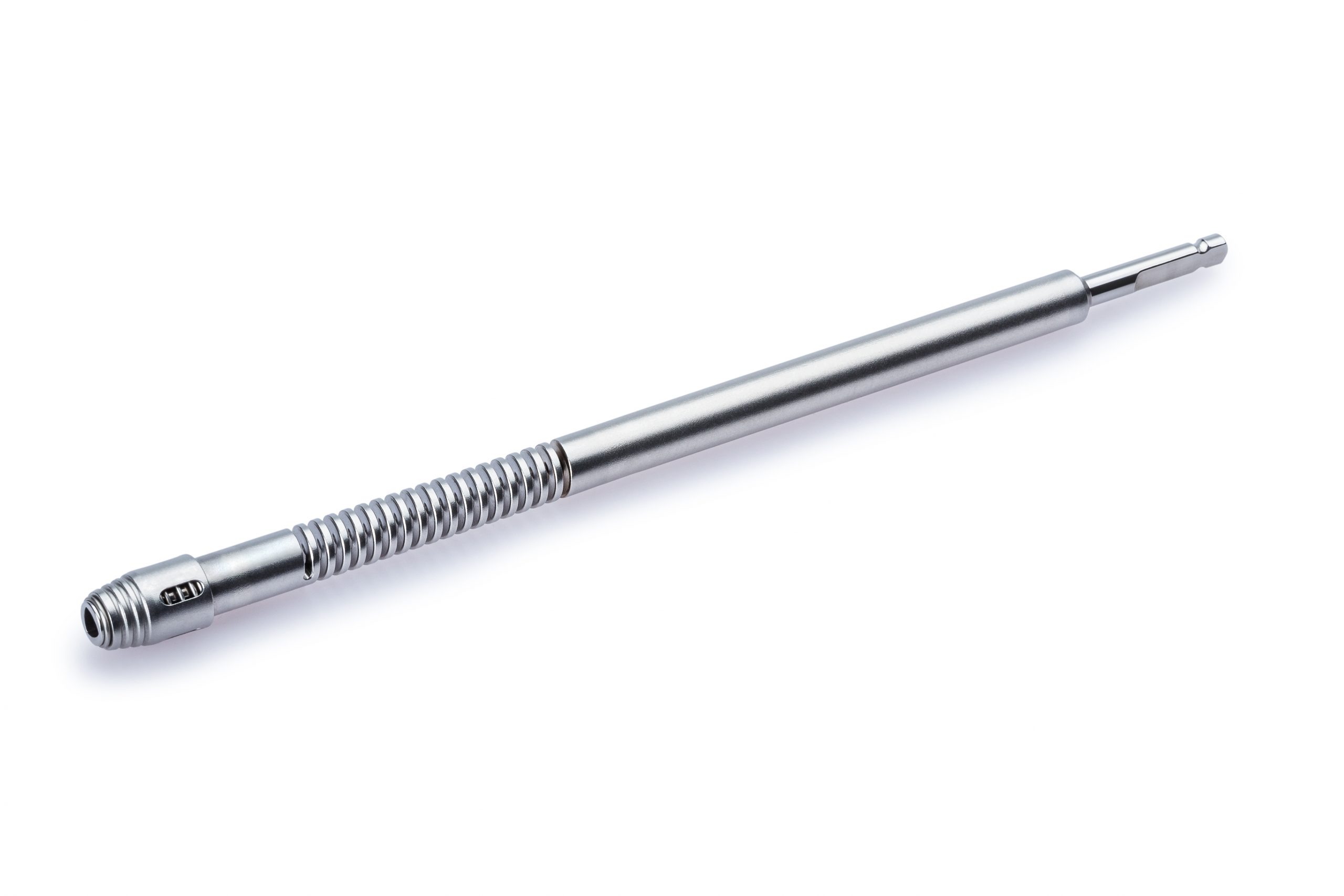

Hexagon screw driver SW 3,5 conical 5°
Art,. No. 206-007
-
- length: 390 mm
- length of handle: 104 mm

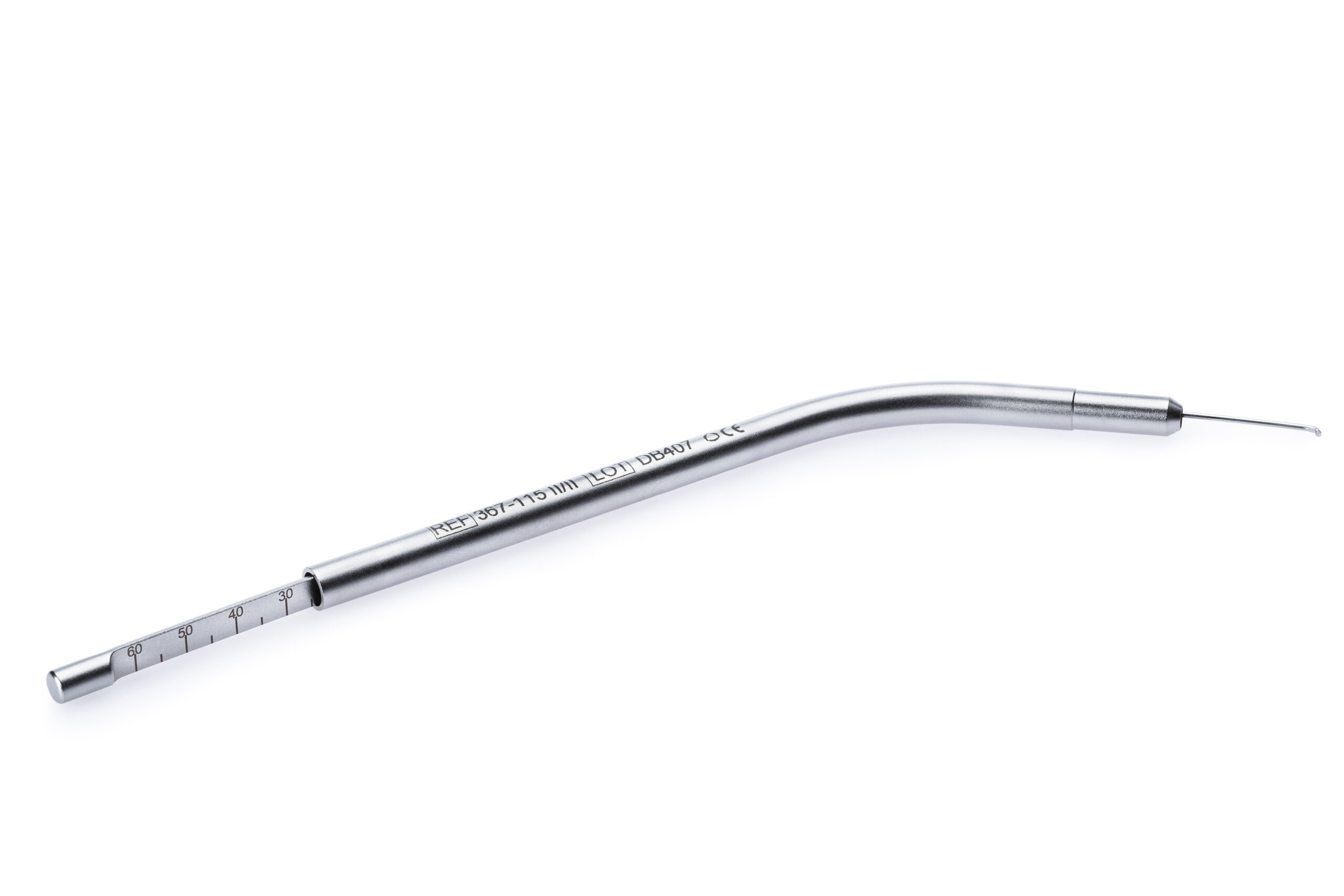

Screw measuring instrument, curved
Art. No. 367-115
- length: 160 mm
- outer diameter: 8 mm
- measuring range: 60 mm

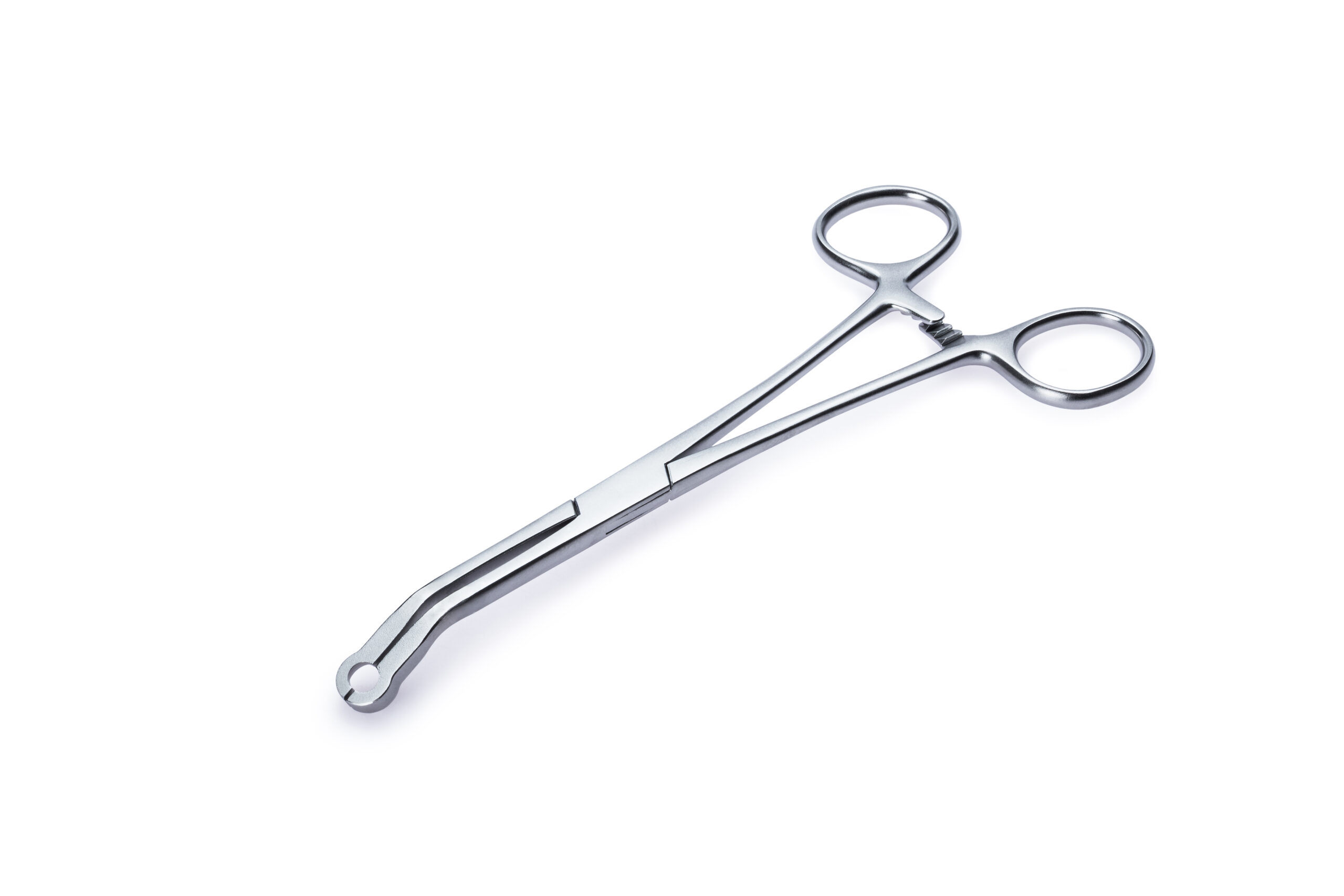

Screw holding forcep
Art. No. 367-1021
-
- total length: 180 mm
- usage: for Flat-head screw
Ø 6,5 mm

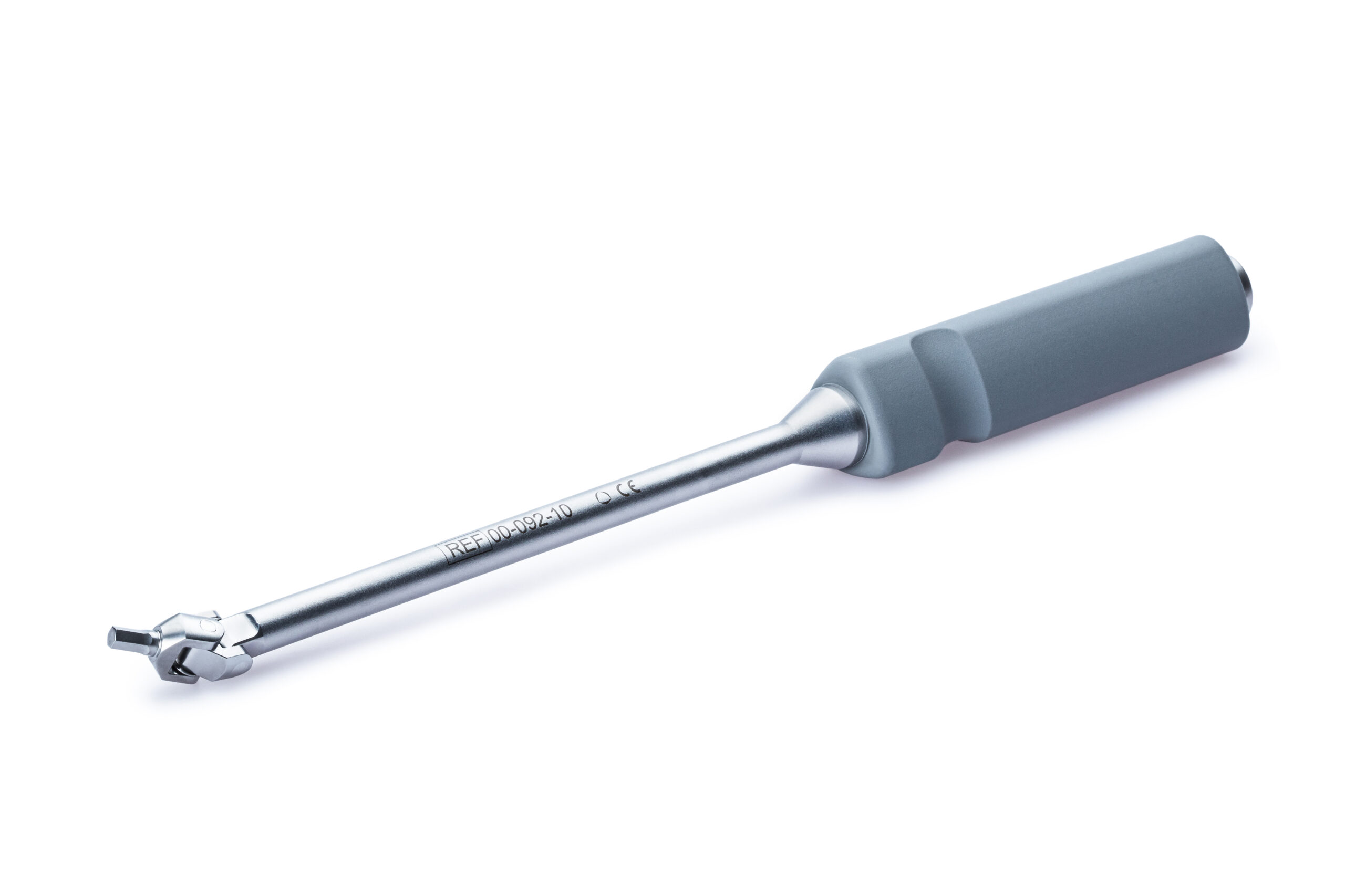

Cardan screw driver, wrench size 3,5 mm
Art. No. 00-092-10
- total length: 273 mm
- length of handle: 105 mm
- wrench size: 3,5 mm
Back to instruments overview
